Client

Dominion Constructors Limited

Value

$3.5M

duration

2 Months

Images

Pullman Hotel

Auckland Airport

Pullman Hotel Auckland Airport is located north of International Terminal and immediately west if the existing Novotel Hotel Auckland International Airport. The actual ground conditions are conformed by asphalt- paved area used for car parking outside the Auckland International Terminal.

The area approximately of the site is 100m long (north-south) and 80m wide (east-west) and has a typical elevation of between RL 6m to 7m, following Geotechnical report done by T&T

CLL Services and Solutions were engaged for the piling works which compromised of

  • 45 Piles, Diameter 900mm, Reinforced concrete piles, Average length: 38.68m
  • 27 Piles, Diameter 750mm, Reinforced concrete piles, Average length: 38.63m
  • 11 Piles, Diameter 600mm, Reinforced concrete piles, Average length of 36.57m
  • 4 Piles, 750dia RC Crane base pile.

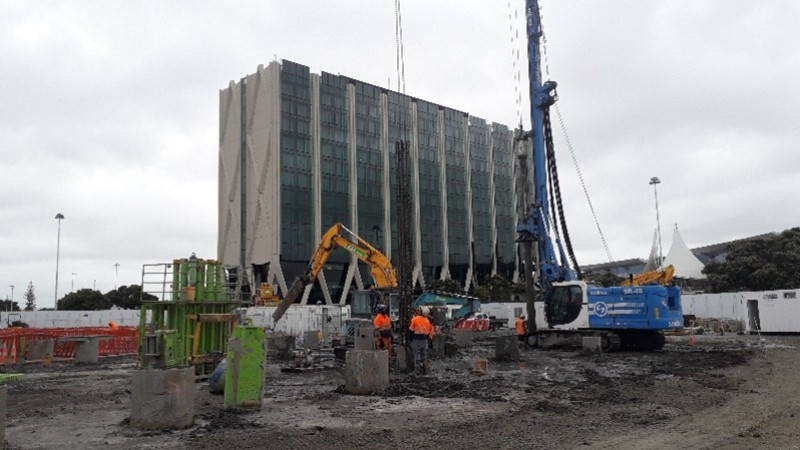

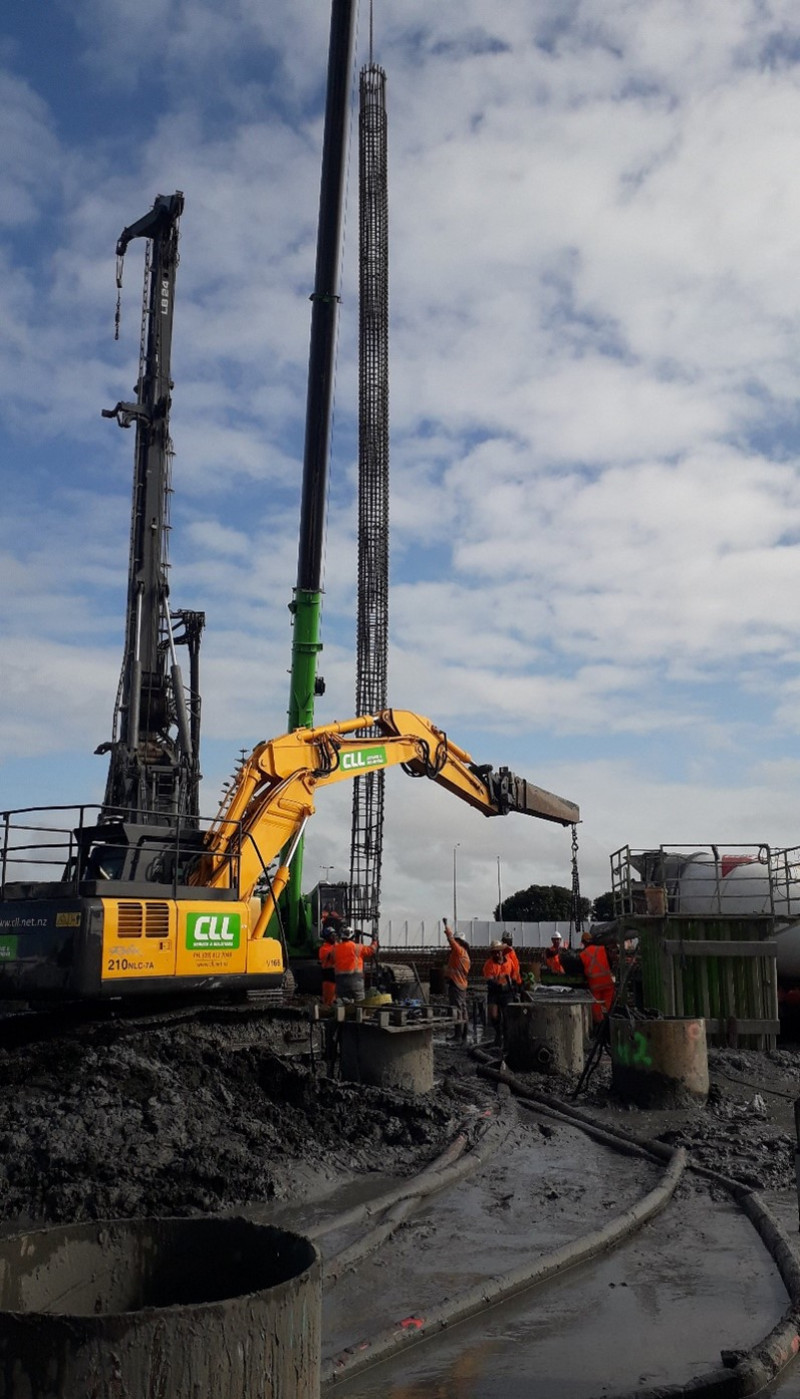

This site included construction of Bore Pile, using permanent non-structural casings, reinforced concrete and bentonite mixture to stabilise the ground for the conditions of the soil following Geotechnical report and Structural specifications
